Freyssinet was contracted to supply multiple post-tensioning systems for use on the Lesner segmental bridge. The Freyssinet team coordinated with the precast facility to ensure the proper installation of the embedded items. Freyssinet’s site team also worked closely with the contractor’s team to make sure that the post-tensioning operations stayed within schedule and within the tight tolerances prescribed while maintaining the highest standards of quality and safety.

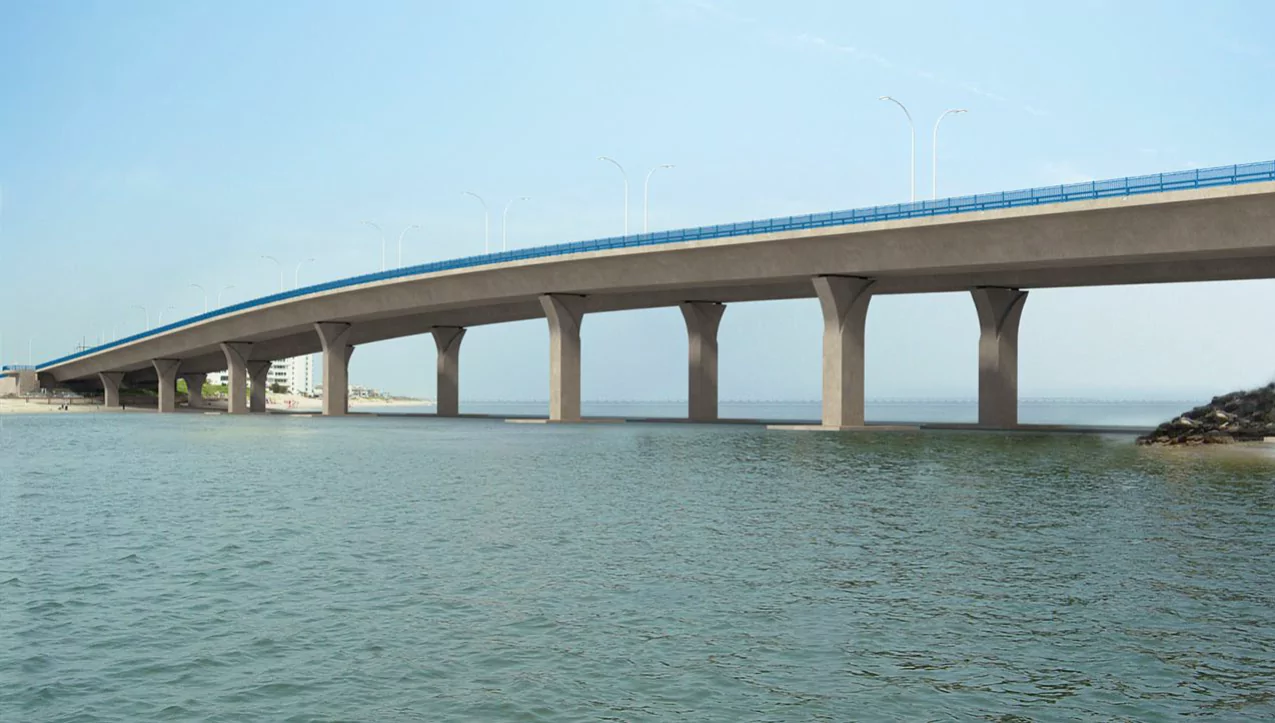

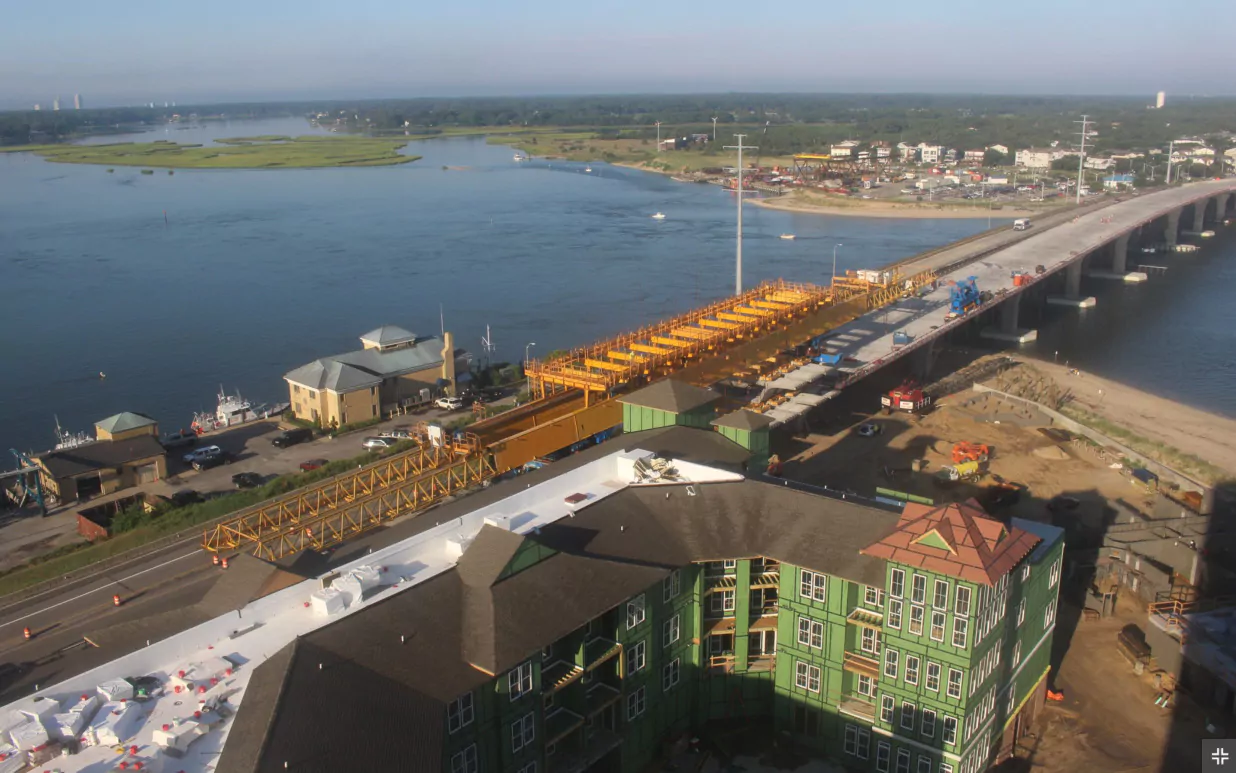

The Lesner Bridge project involved the construction of a 1,575-foot double bridge over the Lynnhaven Inlet in Virginia Beach, featuring a maximum span of 225 feet. The bridge was constructed using the balanced cantilever method using a specially fabricated overhead launching gantry.
-
General ContractorMcLean Contractor
-
OwnerCity of Virginia Beach
-
Project DurationJune 2014-November 2016
-
LocationVirginia Beach, Virginia
Project Description
This new bridge replaced the original structure built in 1957, which was structurally deficient at the time of replacement. The location and surrounding environment are prone to heavy weather and frequent winter storms. Spanning over the inlet of the Chesapeake Bay, the new bridge replaced a low elevation causeway and provided an increased vertical clearance for marine traffic below.
Lesner Bridge Post-Tensioning System
Freyssinet installed an assortment of internal and external post-tensioning systems on this structure including 4-strand flat tendons (4F15), 19-strand tendons (19C15), 27-strand tendons (27C15), 1 3/8″ PT bars, and 1 3/4″ PT bars.
All embedded elements were hot-dip galvanized and all tendons were equipped with deviation systems to enhance durability. Segmental couplers were used to ensure system water-tightness.
