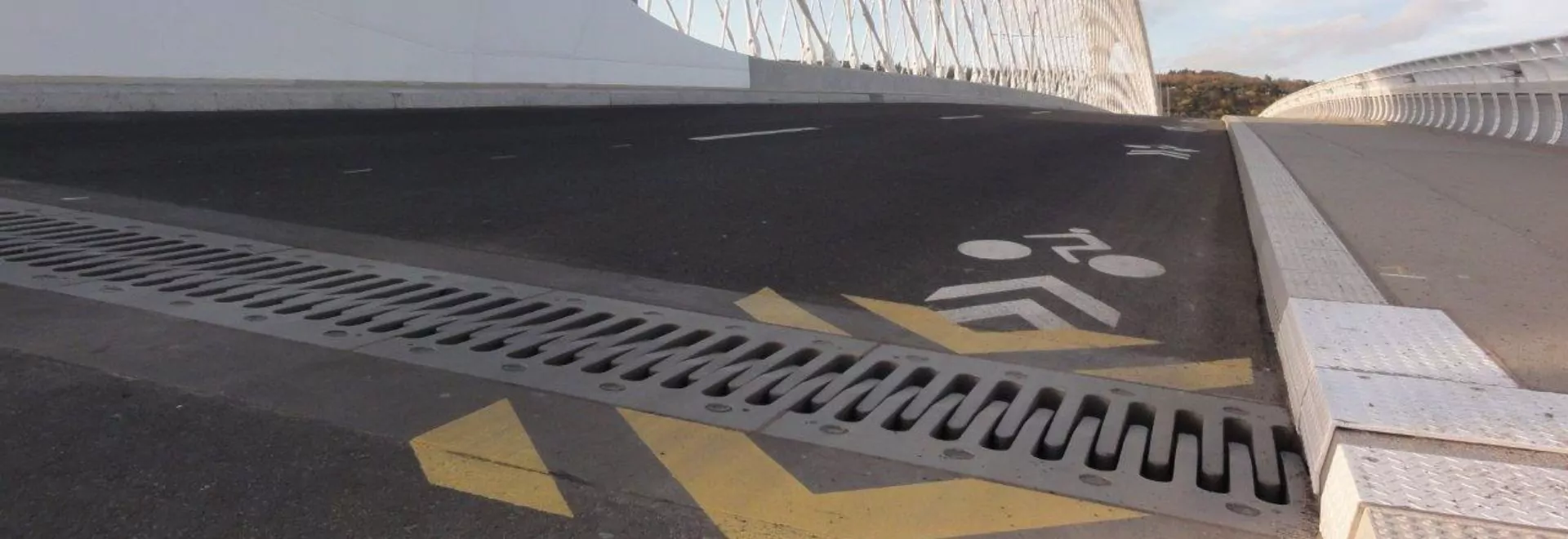

What Are Bridge Expansion Joints?
Bridge expansion joints are structural components installed between two deck sections to absorb movement and transfer traffic loads. They accommodate thermal expansion and contraction, concrete shrinkage, and vehicle loads, relieving the stress that temperature swings and heavy traffic place on the structure. Each joint maintains a continuous, watertight surface that keeps traffic flowing safely as the deck moves. Freyssinet supplies and installs bridge expansion joint systems matched to each project’s movement, drainage, and design requirements across various site conditions.
Bridges move constantly under vehicle loads, wind, and temperature changes, behaving like living systems that shift under external forces. To manage this movement, engineers combine bearings for controlled displacement, restraints for stability, and bridge expansion joints that absorb the repeated stress of heavy traffic and thermal cycling. These systems keep the deck flexible and traffic flowing safely.
Designing expansion joints for new construction starts with assessing how the bridge will respond to traffic, thermal movement, and loads. Engineers calculate the expected movement range, gap size, and service life, then specify the joint type, from elastomeric to modular systems, best suited to the application. Material selection and joint fixity follow, supporting straightforward maintenance and replacement. Partnering with a specialized manufacturer offering a broad range delivers the ideal match for each project’s design requirements.
Replacing an expansion joint on an existing structure begins with a detailed assessment:
- Investigate the cause of the original seal failure, including corrosion or impact damage
- Verify that the built gap meets current structural needs
- Confirm the joint type aligns with gap specifications
- Account for vertical differential movements that may affect traffic flow
- Conduct pull-out tests on large movement joints to prevent pavement failure under heavy loads
A specialized contractor handles the inspections, traffic analysis, sealing, and installation that protect durability and reduce future maintenance.
Freyssinet Expansion Joints by the Numbers
-
50+Years of Industry Expertise
-
90+Countries Utilizing Freyssinet Joints
-
100Standard Models Available
-
65,600Feet Installed Annually
Why Choose Freyssinet's Expansion Joints?
01. Extensive Product Range
Choose from 16 bridge expansion joint types for highway, road and railway decks, parking structures, and traffic areas, with movement capacities from 0.4 to over 47 inches. Whether the deck calls for a buried elastomeric joint or a large modular system, the right match is always in our range.
02. Versatile Compatibility
Each joint adapts to reinforced concrete, steel, and composite decks through optimized anchoring systems engineered to transfer traffic loads into the structure.
03. Superior Waterproofing
Built with integrated water drains, elastomeric (rubber) profiles, and collector membranes, our joints seal the deck against water and protect bearings and substructure from corrosion.
04. Proven Durability
Fatigue-resistant designs are tested over millions of load cycles and secured with prestressed anchors, delivering a proven 50-year service life under heavy traffic.
05. Smooth & Quiet Performance
Engineered to minimize noise and vibration, these joints maintain a smooth, continuous driving surface that reduces wear and improves ride comfort.
06. Efficient Installation & Maintenance
Supplied in standard modular lengths, joints install fast and allow easy in-service replacement of components without closing the deck to traffic.
07. Comprehensive Support
More than products, Freyssinet provides full lifecycle support, from inspections and design consultation to manufacturing, installation, and ongoing maintenance.
From Design to Maintenance
Specification & Design Services
As part of our integrated approach, we provide:
- Comprehensive structural assessments
- Custom-designed expansion joints optimized for performance and cost efficiency
Manufacturing Quality Assurance
Freyssinet Products Company coordinates joint specifications and production with selected manufacturers, matching each component to the project’s movement range and load class. Every joint passes rigorous compliance checks before shipping, backed by ISO 9001, ISO 14001, and ISO 45001 certified manufacturing.
Installation & Technical Supervision
Proper installation matters as much as joint selection. Freyssinet supervises installation sequencing to shorten project timelines and limit traffic disruption, and supports the work with related services including concrete repair, traffic management, hydro-demolition, waterproofing, and resurfacing.
Copyright: Aline Boros
Inspection & Maintenance
Built for long service life with minimal upkeep, our joints stay watertight under heavy traffic. Regular inspections and preventive maintenance catch seal wear and corrosion early, extending service life. Contact us for recommendations and service options.
Road Expansion Joints
-
Structural integrity & longevity
-
Smooth & safe traffic flow
Road Expansion Joints
-
Structural integrity & longevity
-
Smooth & safe traffic flow
I-395/SR 836/I-95 Expansion Joint Installation Project
