Types of Bridge Expansion Joints: Selection Guide

Bridge expansion joints fall into 5 working families: asphaltic plug, compression seal, strip seal, finger plate, and modular. The range of movement the deck has to absorb through thermal expansion and contraction is what decides which family fits a given highway structure.

This guide covers how each type works, where it belongs, and what it costs the owner when it fails.

What Does a Bridge Expansion Joint Do?

A bridge expansion joint is a controlled gap in the deck that lets the superstructure move with temperature swings instead of cracking the wearing surface or damaging the abutments.

Across the structure, the joint does 3 jobs at once: it accommodates that movement, carries the wheel loads that pass over the open gap, and keeps water out by staying sealed.

Thermal Expansion, Contraction, and Live Load Rotation

Thermal expansion and contraction drive most of what the joint has to handle: a deck grows in summer heat and shrinks in winter cold as the temperature cycles through the year. Live load, concrete creep, shrinkage, and seismic demand add rotation and longitudinal travel at the span ends on top of that thermal cycle.

The design travel, expressed in inches, is what sizes a bridge expansion joint, so its rated movement capacity has to accommodate the full range the structure will see. AASHTO LRFD Section 14.5 is the provision that turns those loads and movements into a joint design.

Why Does Watertightness Matter at the Deck Joint?

Watertightness is what separates a joint that protects the bridge from one that quietly destroys it. A leaking joint delivers salt-laden runoff straight onto the bearings, girder ends, and pier caps, which turns a surface-level defect into a bridge bearing maintenance problem well below the joint.

According to the FHWA Service Life Design Reference Guide, joint failure accelerates bearing deterioration, and designers conservatively assume an extra bearing replacement over a bridge’s life because of it. That downstream cost is why keeping the sealing element intact protects a bridge expansion joint and everything under it, long before water and steel meet at the bearing seat. Hold the seal, and the service life of components far more expensive than the joint holds with it.

Bridge Expansion Joints for Small and Medium Movement

Bridge expansion joints for small and medium movement, roughly up to 4 in. of travel, cover the large majority of the US bridge inventory, from county overpasses to mainline highway spans. These are the bridge expansion joints specified for most new bridges, and the 3 families below trade what they cost to install against how long they keep the gap sealed.

Asphaltic Plug Joints

Asphaltic plug joints are the simplest option: a polymer-modified binder mixed with aggregate is poured into a blockout and finished flush with the wearing surface, so the wheel rolls straight over a continuous mat. Installation is fast and the cheapest of any family, which makes the system attractive for resurfacing work and low-movement spans.

The trade-off is service life, because the binder material softens in summer heat and ruts or shoves under heavy truck traffic, so the plug is best kept to lower-volume applications rather than interstate loading.

Compression Seal Joints

Compression seal joints take a different approach from a poured plug: instead of filling the gap with material, they wedge a preformed neoprene element into permanent compression between the joint faces. That rubber seal stays watertight only while it stays compressed, so it fails once the gland takes a permanent set, debris packs the recess, or the joint opens past the working range of the elastomeric element.

Even so, agencies still specify compression seals for modest movement and as a retrofit when the components of a failed strip seal header cannot be rebuilt, because the install is quick and forgiving under those conditions.

Strip Seal Joints

Strip seal joints carry most of the short-to-medium band. Two steel edge rails are anchored into the concrete headers, and a continuous elastomeric gland locks mechanically between them, flexing into a V as the joint opens and folding flat as it closes.

The consequence matters for owners: the gland is the wearing part and the rails are the structural part, so a torn gland is a gland replacement rather than a full joint replacement, which keeps watertight repair cheap when it is caught early. A Purdue JTRP and INDOT multi-state review found the strip seal performing at least on par with the compression seal across Maine, Arkansas, Pennsylvania, and Ohio, which is a large part of why it carries so much of the high-volume inventory.

Bridge Expansion Joints for Large Movement

Bridge expansion joints for large movement start where a single sealed gap runs out of travel: on long spans, cable-stayed bridges, and continuous steel girders that can move well past 4 in. At that scale the joint either splits the travel across several elements, as a modular unit does, or hands it to overlapping steel, as finger plates do, and both routes trade higher capacity for more construction and more structural detailing to maintain.

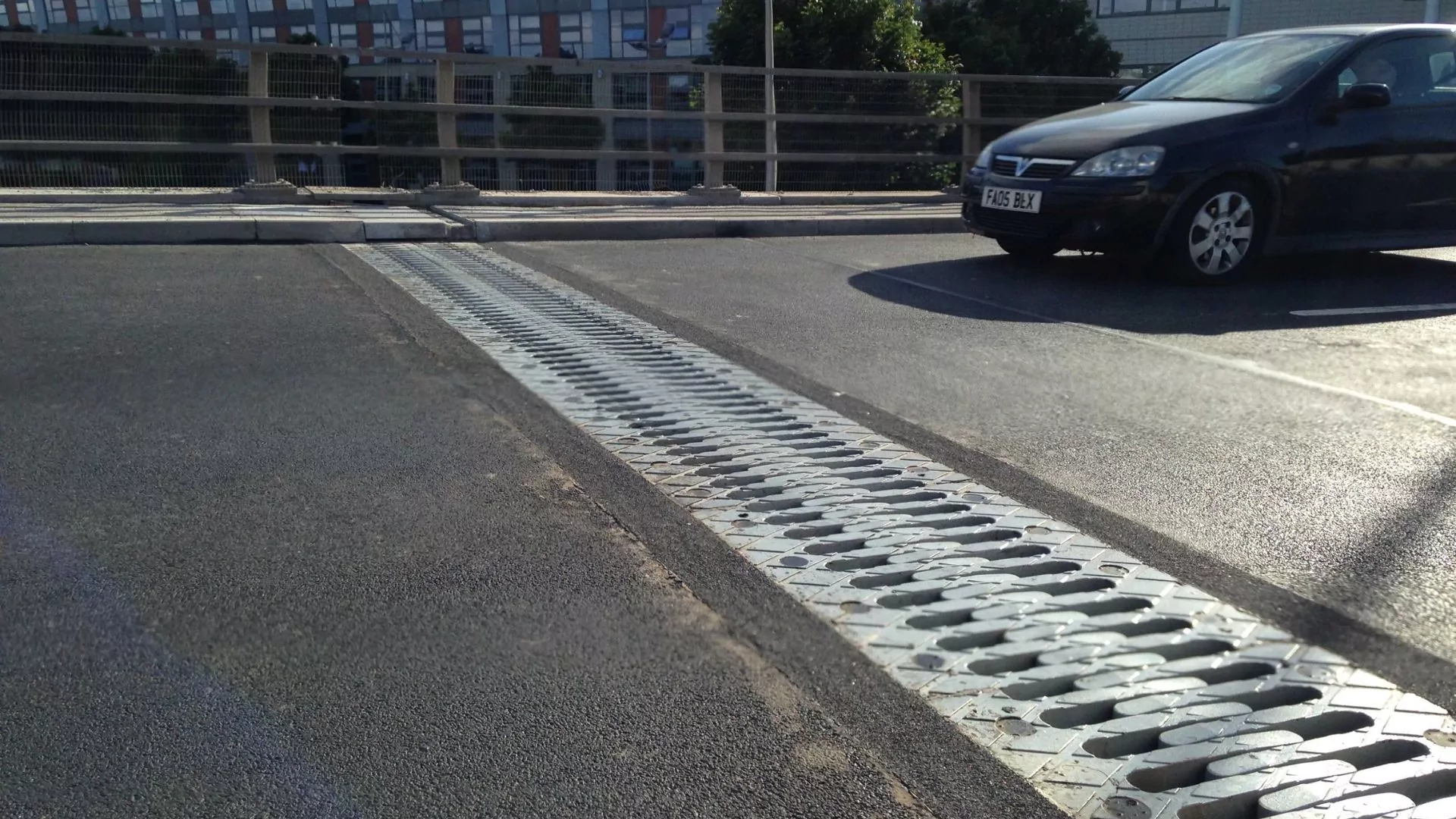

Finger Plate Joints

Finger plate joints carry the load on interlocking cantilevered steel fingers, so the wheel transitions across overlapping plates instead of dropping into an open gap. That design gives an excellent running surface at speed, which is why agencies still favor finger plates on high-speed, long-span steel bridges where ride quality and continuous traffic flow matter.

The catch is drainage, because the joint is open by default and needs a trough or drainage system underneath, and a trough left full of debris routes the runoff straight onto the substructure, so a finger joint used without trough maintenance punishes everything below it just as a torn seal would.

Modular Bridge Expansion Joints

Modular bridge expansion joints, abbreviated MBEJ, exist for the movements nothing else can absorb. Compared with a single strip seal, a modular joint distributes the total travel across several center beams and glands carried on support bars, which is how it reaches the largest movement capacities in the inventory and why it shows up on major river crossings and cable-stayed spans.

That capacity has a price: more moving parts and a higher initial cost, and because every wheel impact cycles the welded connections between center beams and support bars, fatigue at those welds is the dominant long-term risk rather than the glands or seals themselves. A modular joint is also the most heavily tested family, with formal watertightness acceptance checks before it is signed off, so the system components are known quantities when it is installed and maintained correctly.

Sliding Plate and Swivel Joints

Sliding plate and swivel joints handle the cases a straight modular run cannot: heavy skew, curved alignments, or combined longitudinal and transverse travel where the deck moves in more than one direction at once.

Older sliding and bolt-down plate details, made for those conditions decades ago, have largely been retired for durability reasons. State manuals now replace them on rehabilitation work with strip seal or rapid-cure silicone systems, which install faster and stay flexible in the applications where the old plates used to sit.

How Do You Select the Right Bridge Expansion Joint?

The right bridge expansion joint falls out of 3 inputs taken in order: how far the span moves, how many trucks cross it, and what the joint costs over its whole life rather than on the bid sheet. Taken together those 3 provide the specification, so getting the order wrong still returns a joint type that is technically correct and economically wrong, which is why this guide settles movement range first, traffic second, and life-cycle design cost last.

How Much Thermal Travel Must the Joint Absorb?

Thermal travel is the first number to pin down, and it comes from span length, superstructure material, the agency’s design temperature range, and skew. That single figure has to accommodate the full swing of expansion and contraction the structure will see, and it eliminates most of the catalogue before any cost discussion starts, because a joint whose capacity is below the calculated travel is simply off the table.

How Does Truck Volume Affect Ride Quality and Fatigue?

Truck volume decides how hard the joint gets worked, because every wheel crossing is a small impact event and it is the count of those events over 30 years, not the single heaviest axle, that fatigues edge rails, anchorages, and modular support bars.

A joint on a low-traffic county road and the same joint on an interstate see completely different service even at identical movement ratings, so traffic data belongs in the selection as much as the loads themselves. High-speed highway corridors add one more factor, ride quality and tire noise across the running surface, which is where finger plates keep an edge over modular units on long steel spans.

What Does the Joint Cost Across Its Service Life?

The cost of a bridge expansion joint gets underweighted more than any other input, because the number that matters is life-cycle cost, not the line item on the bid sheet.

The same FHWA Service Life Design Reference Guide (mentioned above) puts the achievable service life of bridge joints at 8 to 50 years, with 25 years as the typical design target, and joint choice plus maintenance provide almost the entire difference between those 2 ends.

A joint that saves a few thousand dollars at installation but needs replacing at 8 years instead of 25 is the more expensive joint over the long run, because every replacement means lane closures, traffic control, and more of the downstream bearing repair a leaking joint sets up.

Why Do Bridge Expansion Joints Fail Early?

Bridge expansion joints rarely fail because someone miscalculated the movement; under real service conditions they fail because debris, salt, and water are allowed to work on a joint used well past its maintenance interval. That failure is progressive rather than sudden, which is why it gets missed.

Gland Tears and Debris Packing

Gland tears are the first failure most joints suffer, and they start with packing: grit, salt, and asphalt fragments fill the gap until the elastomeric gland can no longer fold, so it splits from the bottom and the tear propagates upward.

The rubber seal sits below the running surface, so the joint still looks intact from the deck even after the seal has failed, which is why this is the failure inspectors miss most often. It is also the cheapest to fix while it is still just torn gland material, before the damage reaches anything structural.

Anchorage and Header Breakdown

Unlike a torn gland, a failed header takes the concrete with it. Anchorage studs work loose under repeated wheel impact, the elastomeric concrete or nosing around the rail spalls away, and the steel edge rail begins moving independently of the deck instead of with it.

At that stage the fix is no longer a gland swap but a structural repair, because the original installation has to be rebuilt, its components re-anchored, and the header restored through concrete restoration before a new joint will hold.

Leakage Damage to Bearings, Girder Ends, and Pier Caps

Leakage does the most expensive damage of any joint failure, and it happens out of sight below the deck. Chloride-laden water pours down the girder ends onto the bearings and pier caps, so a single winter of leakage seeds corrosion that compounds through every freeze-thaw cycle that follows, and a joint that no longer stays watertight quietly transfers its damage to the steel and concrete around it.

That is the real cost of a failed joint: not the gland, but the shortened service life of the bearings, girder ends, and pier caps that a sealed joint would have protected for the full life of the bridge.

Jointless Bridge Construction Removes the Deck Joint

Jointless bridge construction takes the logic of this guide to its conclusion: if the joint is the part most likely to fail, the most durable design is often the one that removes it. Where span length, skew, and soil conditions allow, integral and semi-integral abutments and link slabs make the deck continuous over the supports, so there is no gland to tear and no header to rebuild.

The trade is that these details are only feasible within a limited range of span and geometry, and a large share of new bridges are still built as conventional structures with joints for exactly that reason. Jointless construction is best read as one of 2 strategies: reduce joint count where the geometry permits, and maintain the joints that remain everywhere else.
