GPR Tendon Mapping: Locate Hidden Strands

GPR tendon mapping settles the question that decides whether a core, saw cut, or drilled anchor turns out safe or catastrophic: where exactly do the post-tensioned tendons run inside the concrete?

A crew that guesses wrong can clip a tensioned strand and release prestress across an entire structural element, not just the spot they hit.

This guide covers what the survey is, what it can and can’t see inside post-tensioned concrete, where it belongs in a full inspection program, and which non-destructive evaluation (NDE) methods take over where it reaches its limits.

What Is GPR Tendon Mapping?

GPR tendon mapping is a non-destructive survey that reads the inside of hardened concrete without touching a strand. An antenna on the surface sends high-frequency electromagnetic waves into the slab or girder and records the echoes returned by embedded metal and each tendon duct, which read clearly because metal reflects radar far more strongly than cement and aggregate.

Federal bridge guidance recognizes the same behavior for measuring concrete cover and mapping reinforcement layout, member thickness, and other embedded objects.

Since the method never breaks the surface, one pass can detect the tendons, rebar, and duct walls that a visual inspection never reaches while the structure stays in service.

How Do Radar Waves Reveal Tendon Ducts?

Radar waves reveal a tendon duct through the shape of their own reflection. As the antenna travels along a scan line, each electromagnetic pulse that crosses a buried duct comes back as a hyperbola, a curve whose apex sits directly over the duct centerline, so the peak marks the horizontal position.

The depth comes from time, because the system measures the two-way travel time of each pulse and converts it to a distance once the wave velocity in that specific concrete is known. Read together, those results let the survey pin a duct’s plan position and depth instead of guessing from as-built drawings.

Tendon Duct Signatures Compared With Rebar Reflections

Tendon duct signatures look different from the reflections that rebar throws back. A single reinforcing bar sits shallow and returns a tight, simple hyperbola, while a grouted duct is larger, runs deeper, and usually hides behind the reinforcement mat, which is what makes it hard to locate with a cover meter or pachometer alone.

That difference matters in practice: rebar locating answers a cover question, how far below the surface the top steel sits, whereas mapping the tendons answers a geometry question, where each duct rises and falls along the length of the slab or beam.

Knowing which question is on the table tells a crew whether they can identify the steel with a quick scan or need a full profiling survey.

Where Does GPR Tendon Mapping Fit in a Post-Tensioning Inspection Program?

GPR tendon mapping earns its place at the very front of the workflow, ahead of the other non-destructive methods and well before anything destructive begins.

A structured post-tensioning inspection follows a deliberate order set out in the Post-Tensioning Institute’s technical literature: locate the tendons first, detect grout voids next, narrow the suspect zones for a borescope, then narrow further still for any destructive testing. Mapping sits at step 1 because every later step depends on knowing where the tendons actually are, and skipping it leaves each downstream decision resting on assumption instead of field information.

That single survey converts a blind program into a targeted one, giving owners the structural picture they need to act under real service conditions. The payoff lands at the moment a bit is about to touch concrete.

Why Does GPR Tendon Mapping Matter Before Coring or Drilling?

GPR tendon mapping matters most in the minutes before a bit touches concrete, because it converts a blind penetration into a planned one.

Coring, saw cutting, and drilling all assume the operator can determine what sits behind the surface, yet anchorage zones, diaphragms, and deviation blocks, the very places crews most often need to open, are where reinforcement and tendons crowd together and guesswork fails.

Federal failure investigations trace serious tendon problems to exactly these congested details, so fixing tendon position first removes the largest safety and structural unknown before any destructive work starts.

3 kinds of work routinely trigger a mapping survey:

1. The first is renovation penetration, where new openings for stairs, elevators, or mechanical risers must pass through an occupied post-tensioned slab.
2. The second is strengthening, where anchors for supplemental post-tensioning or fiber-reinforced polymer systems have to be set without clipping an existing tendon.
3. The third is investigation itself, where a controlled breach into a duct is the goal and the survey defines the safe window to reach it. In every case the sequence is the same: locate first, then cut.

Strand Damage and Prestress Loss From Blind Penetration

A severed strand does not fail quietly. If a core barrel or drill bit cuts a tensioned strand, prestress redistributes along the entire tendon length and the member loses capacity it was engineered to carry, so the damage is never confined to the hole. Cutting a passive rebar weakens one spot, while cutting a stressed strand releases a force that was holding the element in compression, which is why a crew must fix tendon position before penetrating rather than after.

The United States failure record shows why owners treat these elements with such caution. The first corrosion-induced post-tensioned tendon failure appeared on the Varina-Enon Bridge in Virginia in 2007, 17 years after the bridge opened, with a second failure in 2017. Reliability modeling shows a post-tensioned bridge can fail as early as 21 years after construction when strands sit in high-chloride conditions.

Those conditions also tell a crew where an intentional opening belongs: at tendon high points near piers and at anchorage zones where water migrates and grout voids form.

The true high point is often blocked by reinforcement congestion, so crews use the mapping data to open the closest reachable low-risk window instead. When that opening confirms damage, the same access point often becomes the entry for post-tensioning system repair, so investigation and fix share one hole rather than two.

What Can GPR Tendon Mapping Detect in Post-Tensioned Concrete?

GPR tendon mapping can detect far more than the tendons that give it its name. A single survey returns the plan position of each tendon, the depth and parabolic profile of its duct, the concrete cover over the top steel, the reinforcement layout around it, member thickness, and other embedded conduits that share the slab.

Tendon Profile, Depth, and Cover Measurement

The tendon profile is the deliverable that makes the rest of the job possible. Mapping plots the parabolic geometry of each tendon along the element and records the depth, and where needed the member thickness, at every point the scan line crosses a duct, which is what defines a safe drill window between strands.

Those depth results stay accurate only once wave velocity is calibrated against a known-depth reference target in that same concrete, because velocity shifts with moisture and mix, and an uncalibrated reading can misplace a duct by inches.

The Federal Highway Administration’s bridge deck preservation decision tree even assigns low-speed GPR to cover depth distribution as the standard method for that measurement.

What a structure owner receives on the project is a practical package: marked drill windows, a depth table, plotted tendon geometry, flagged uncertainty zones, and a written limitation statement that feeds directly into longer-term structural integrity management of the asset. That package, not the raw scan, is what a repair team actually plans from.

Can GPR Tendon Mapping Find Strands Inside Plastic Ducts?

A plastic duct decides how deep the survey can see. Because the survey reads plastic and steel duct material very differently, the same instrument returns 2 levels of detail from 2 otherwise identical tendons.

When the tendon runs inside a plastic duct, the radar reaches past the wall, so the technology can locate the strands embedded in the duct and flag the grout voids around them, a capability the Federal Highway Administration documents for plastic-duct systems.

When the duct is steel, the metal wall reflects almost everything and dominates the return, so the survey detects the duct itself while the internal condition stays hidden behind it.

That split maps onto the PTI and ASBI protection levels PL1, PL2, and PL3, which grade how completely a tendon is encapsulated, and it explains why a plastic-duct structure returns clean strand data while a steel-duct member shows little more than a duct wall.

Congested Reinforcement and Signal Interpretation

Dense reinforcement tests the interpreter far more than it tests the radar. Closely spaced rebar throws overlapping hyperbolas that mask the deeper duct return, so a raw line scan alone can hide the very tendon the crew came to find. Skilled analysts get around this by reading depth slices and pseudo cross-section views instead of single scan lines, and by collecting orthogonal scanning passes at spacing tight enough to catch a duct between adjacent bars.

The findings are marked on the slab surface in real time, then processed into a plotted duct path that transfers to site markings or CAD drawings the trades can work from. This is also why the Federal Highway Administration stresses that extensive training and experience are needed to acquire, process, and identify results correctly, because the raw data rewards judgment more than the instrument.

Even with expert interpretation, the survey works inside physical limits worth stating up front.

• Depth ceiling: in densely reinforced concrete the usable range for tendon-scale targets is often quoted at roughly 16 to 20 inches, because packed steel scatters energy before it can return from anything deeper.
• Moisture and chloride: pore water and dissolved salt raise conductivity and attenuate the radar waves, so usable depth drops below the dry-concrete range.
• Antenna frequency: a higher frequency buys resolution near the surface while a lower frequency reaches depth and gives up detail, so crews pair 2 or more antennas and merge the passes.

Federal guidance adds three caveats that belong in any documented limitation statement: a void registers only when it holds significant air or water, air-coupled systems shouldn’t be trusted to report defect depth, and steel fibers or steel slag in the material can stop penetration altogether.

Those conditions are what an honest report flags rather than guesses through. Mapping can determine where a tendon runs accurately, but the results say far less about the condition of the steel inside, and that question belongs to the complementary methods used alongside it:

• Impact echo and ultrasonic pulse echo: respond to air-filled grout voids and member thickness.
• Magnetic flux leakage: detects lost strand cross-section along the tendon.
• Borescope: confirms grout and strand by eye through a controlled opening.

Owners buy those non-destructive tests as coordinated concrete condition assessment services instead of isolated checks, and the NCHRP 14-28 benchmark study put the same methods against post-tensioned mock-ups with fabricated defects. The information they return is what turns a location map into a repair decision, and what that map looks like depends on the structure being scanned.

GPR Tendon Mapping Across Bridges, Buildings, and Parking Structures

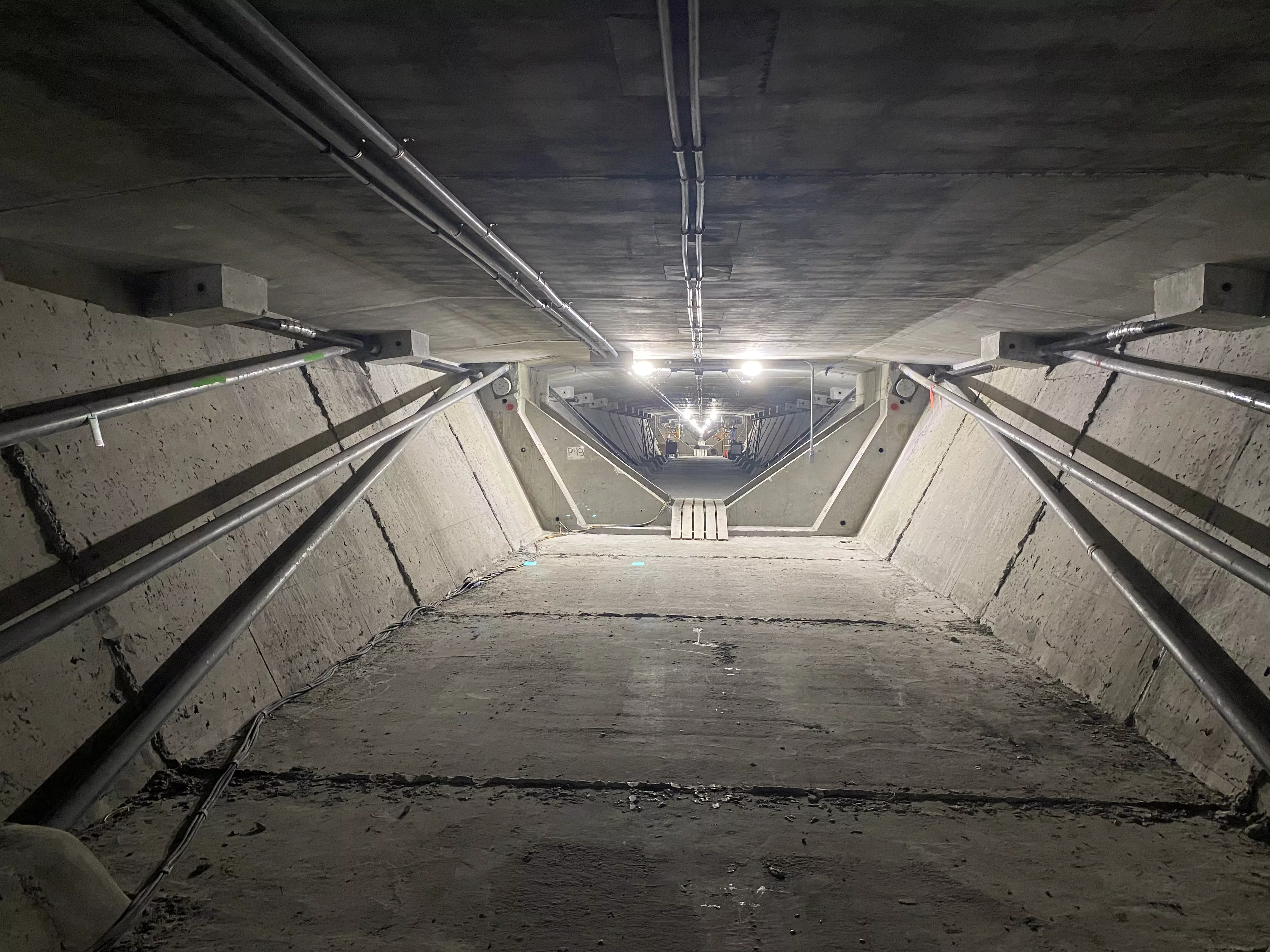

GPR tendon mapping adapts to whatever structure it’s asked to read, and the structure type changes how the survey is run. On box girder and segmental bridges, much of the mapping happens from inside the hollow cell, where a crew works along the interior walls and soffit to trace the draped tendon profile through each segment before any coring or anchor installation begins. That interior access matters, because the congested end blocks and anchorage diaphragms that make bridge tendons hardest to locate are exactly the zones a bridge repair and strengthening program most often needs to open.

In buildings and parking structures, the tendons run through post-tensioned slabs instead of girders, laid out as banded groups in one direction and distributed strands in the other.

Mapping a slab like this serves 2 jobs at once: it fixes the tendon layout before a new opening is cut for stairs, risers, or equipment, and it flags the electrical conduits and utility runs cast into the same slab, so a single survey protects both the prestress and the services buried beside it.

That double duty is what makes the survey a routine structural safety step in occupied construction, where a blind core through a parking deck can hit a live tendon and a power line in the same stroke.

Plan Your GPR Tendon Mapping Survey With Freyssinet USA

Freyssinet USA runs the full chain in-house, from field NDE and GPR tendon mapping to the engineering interpretation that turns a scan into a decision, and the post-tensioning repair work that follows once a defect is confirmed.

Because the same team handles the non-destructive survey and the structural repair, a project never loses time handing findings between a scanning vendor and a separate contractor, and the services stay accountable to a single point of contact.

Tell the Freyssinet USA team about your structure, and we’ll scope a survey built around the access, depth, and answers your project actually needs.

Frequently Asked Questions About GPR Tendon Mapping

How Accurate Is GPR Tendon Mapping?

GPR tendon mapping is most accurate at fixing plan position and less certain about absolute depth, which depends on how well wave velocity was calibrated in that specific concrete. Congestion, moisture, and chloride conditions widen the margin, so a good report gives plan position with high confidence and depth as a calibrated range rather than a single number.

Can GPR Tendon Mapping Confirm Whether a Tendon Is Corroded?

No, not on its own. Mapping locates the tendon and can flag grout voids, but it doesn’t grade the steel or detect active corrosion, so you pair it with magnetic flux leakage, impact echo, and a borescope to confirm section loss or a broken wire.

Does the Structure Need to Be Taken Out of Service?

The survey rarely forces a shutdown, because GPR tendon mapping is non-destructive and surface-coupled, so the structure stays fully load-bearing throughout. Access and traffic control drive scheduling far more than the mapping does, so on a live bridge or occupied deck the safety plan for reaching the scan area sets the timeline.

What Surface Preparation Does a Survey Require?

Surface preparation stays light: the survey needs a clean, dry, accessible surface, so loose debris, standing water, and heavy coatings should be cleared or noted, since each changes how the signal couples into the concrete. The crew also needs enough clearance to move the antenna across every scan line, which sometimes means shifting parked vehicles, stored material, or temporary formwork first.

Which Drawings Should Be Provided Before Scanning?

As-built drawings are the most useful thing you can hand the crew. Tendon layout drawings, shop drawings, and prior inspection reports narrow the search before scanning starts and help the crew determine which zones need the tightest scan spacing.

Why Can’t As-Built Drawings Replace a Survey?

As-built drawings record design intent, not built reality, and tendon position routinely shifts during placement, stressing, and later repair. Only a survey confirms where the duct actually sits in the element you are about to open.

Who Should Interpret the Survey Data?

Interpretation belongs to a technician trained in concrete radar, working with the structural engineer responsible for the element, because congested reinforcement returns signatures that resemble a duct. Federal guidance is explicit that acquisition, processing, and interpretation each require extensive training.

Should a Survey Be Repeated Before Every Penetration?

Yes, whenever the new opening falls outside a zone already scanned and marked, since surface markings fade and a mapped window only covers the element on which it was collected. Re-scanning costs a fraction of the repair that follows a severed strand.
